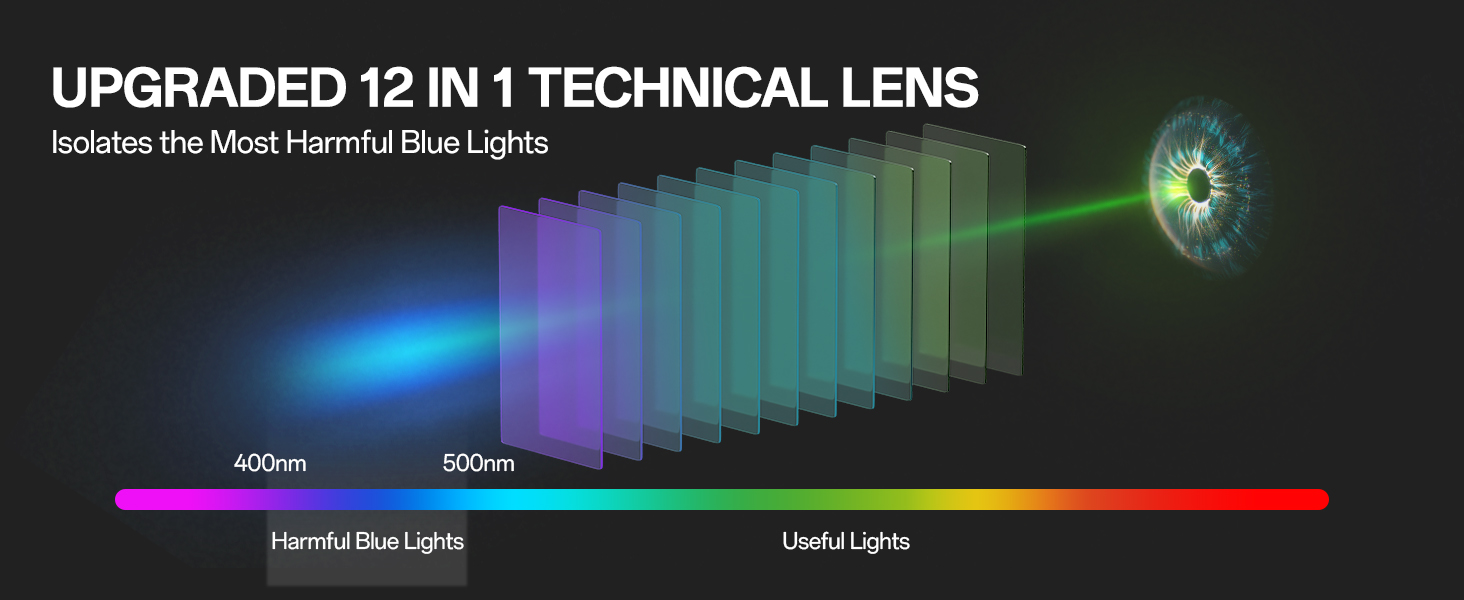

TrueColortechnologyenablesyoutonotonlyseebetter,butalsoseemore.

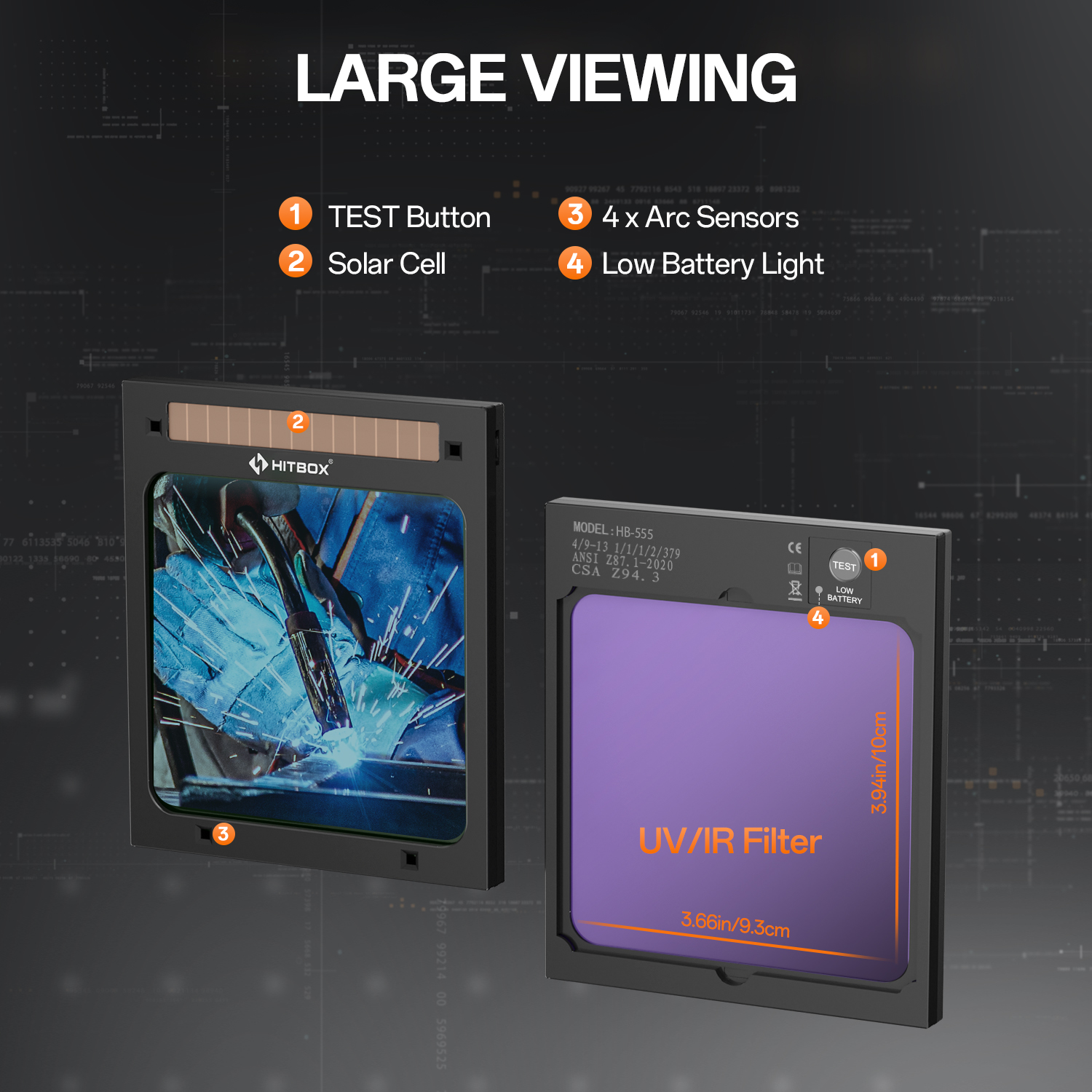

HiTBoXweldinghelmethassuperlargeviewingsize(3.94x3.66").

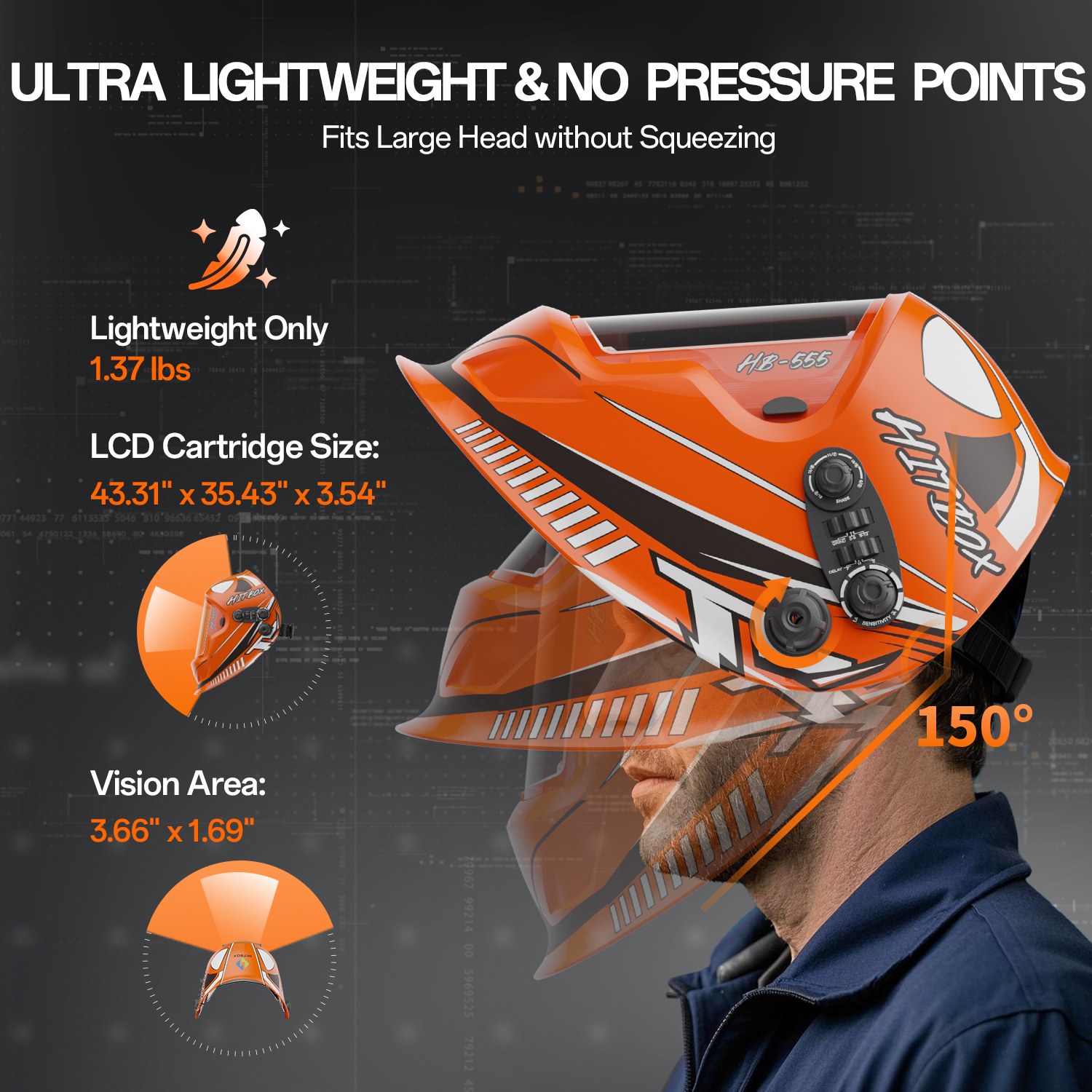

ULTRA COMFORTABLE

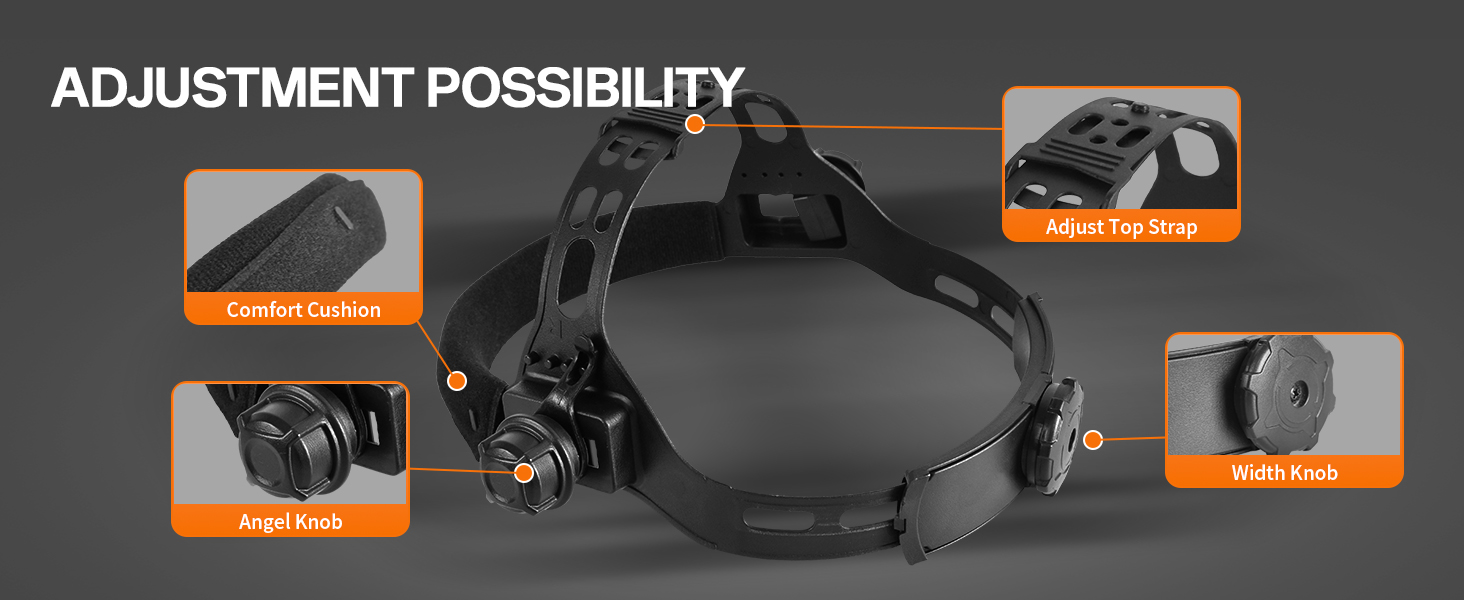

Headgear with over sized comfort cushion provides extensive adjustability, settings, and improved support for better fit and comort.

Whole hood is design with light weight, has luxury and unique headgear, so you will wear it more comfortably

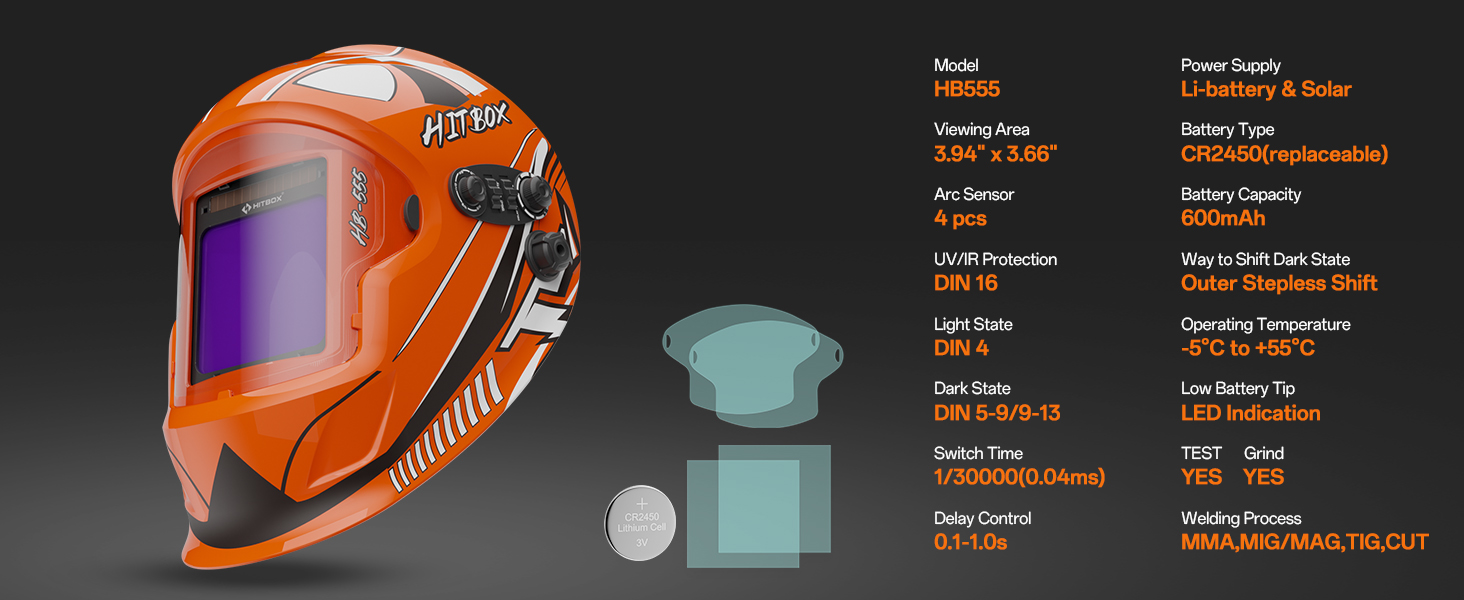

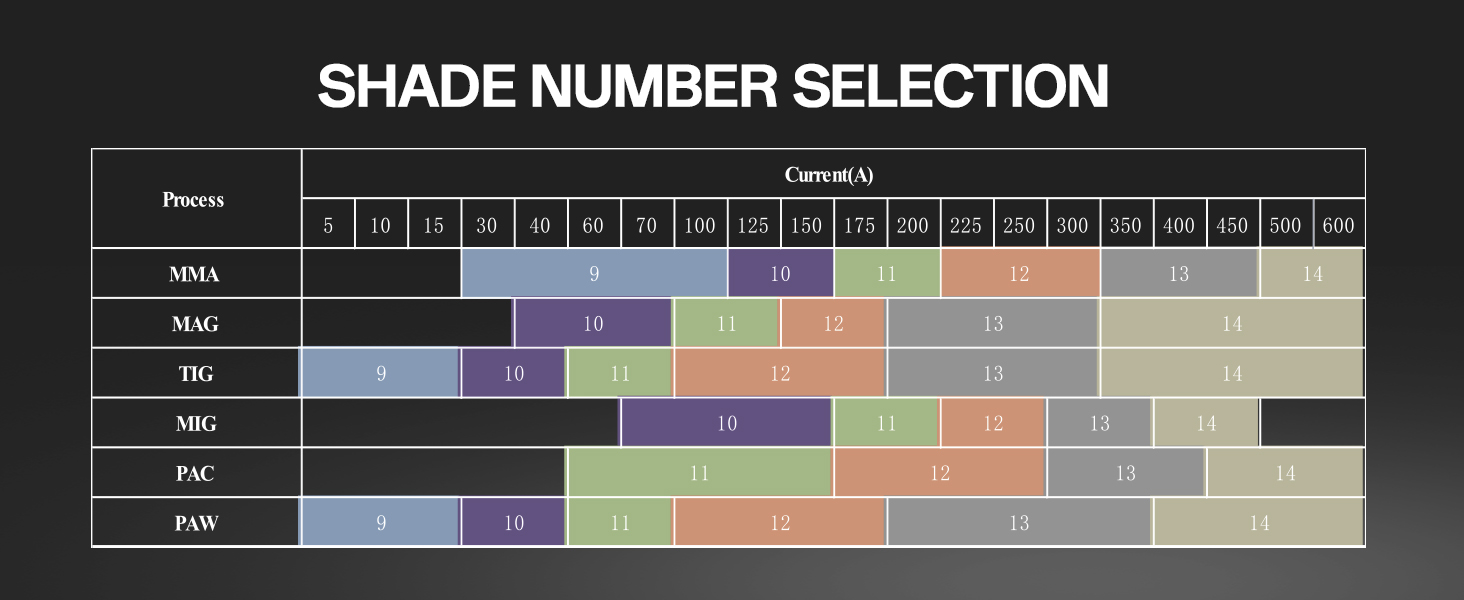

Darkshade: DIN5~DIN9/DIN9~DIN13

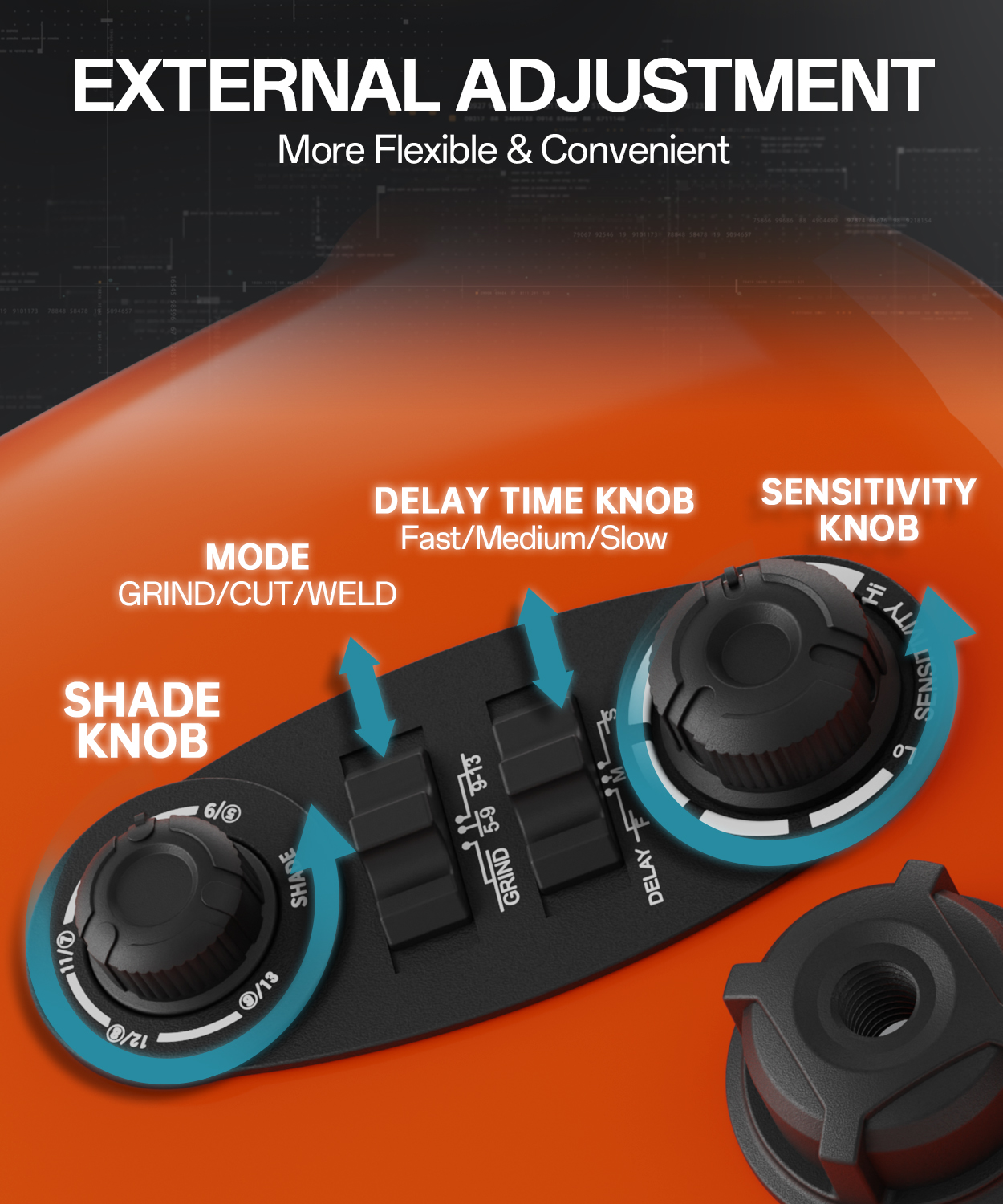

Sensitivity:

When welding current is small, put the "sensitivity" knob to high place.

When welding current is large, put the"sensitivity"knobto low place.

Sensitivity is stepless control,set by hand according to actual situation

Delay:

Delay time is time from dark to light, Steplesscontrol.

When welding current is big and the light of molten pool is very strong, put the delay knob to high place.

If you want to do spot welding, you need to put the“delay" knob to low place.

Adjust "delay" knob to middle place issuitable for most of welding mode.

MODE: Change the place of the mode key, the function will change between WELD" , "CUT" and GRIND.

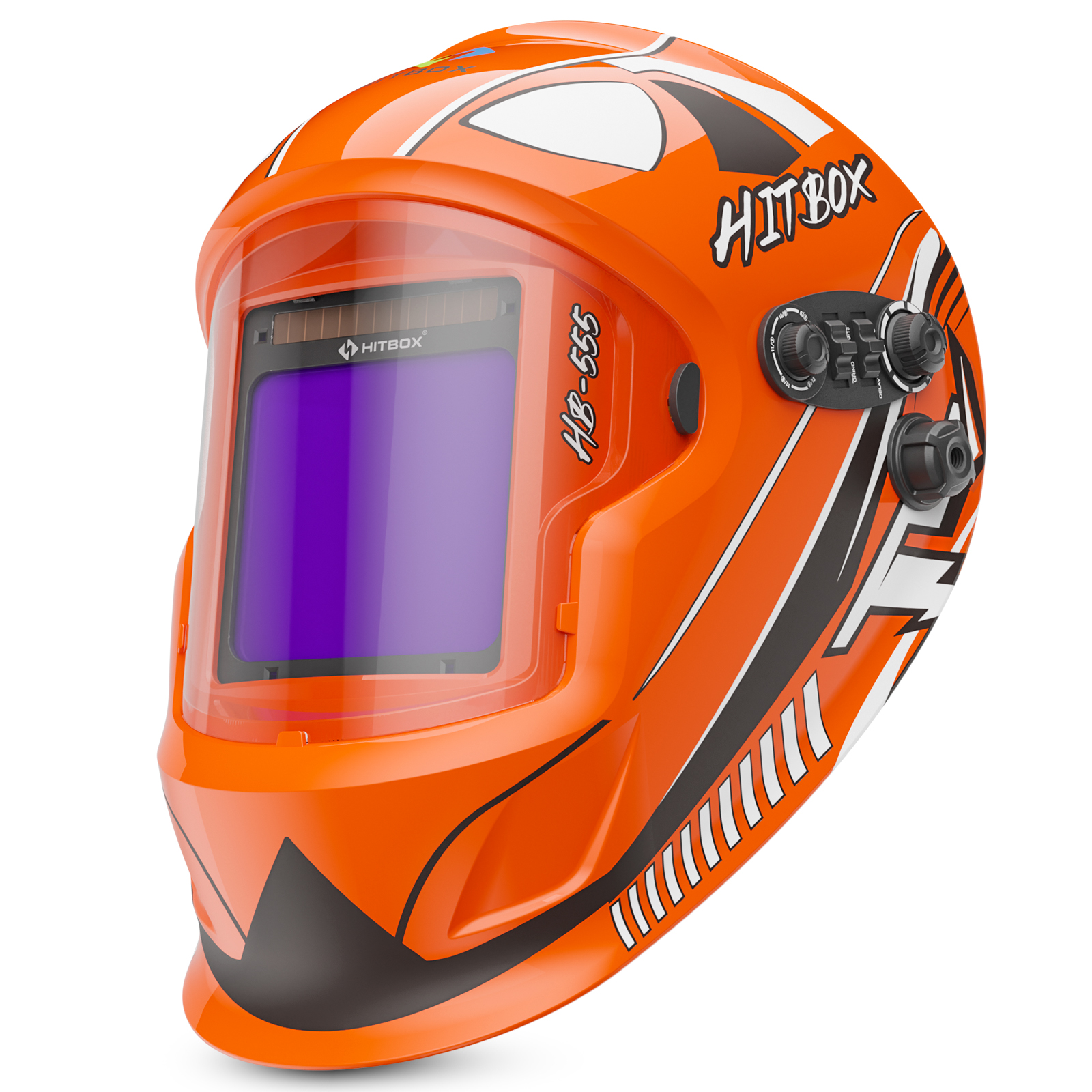

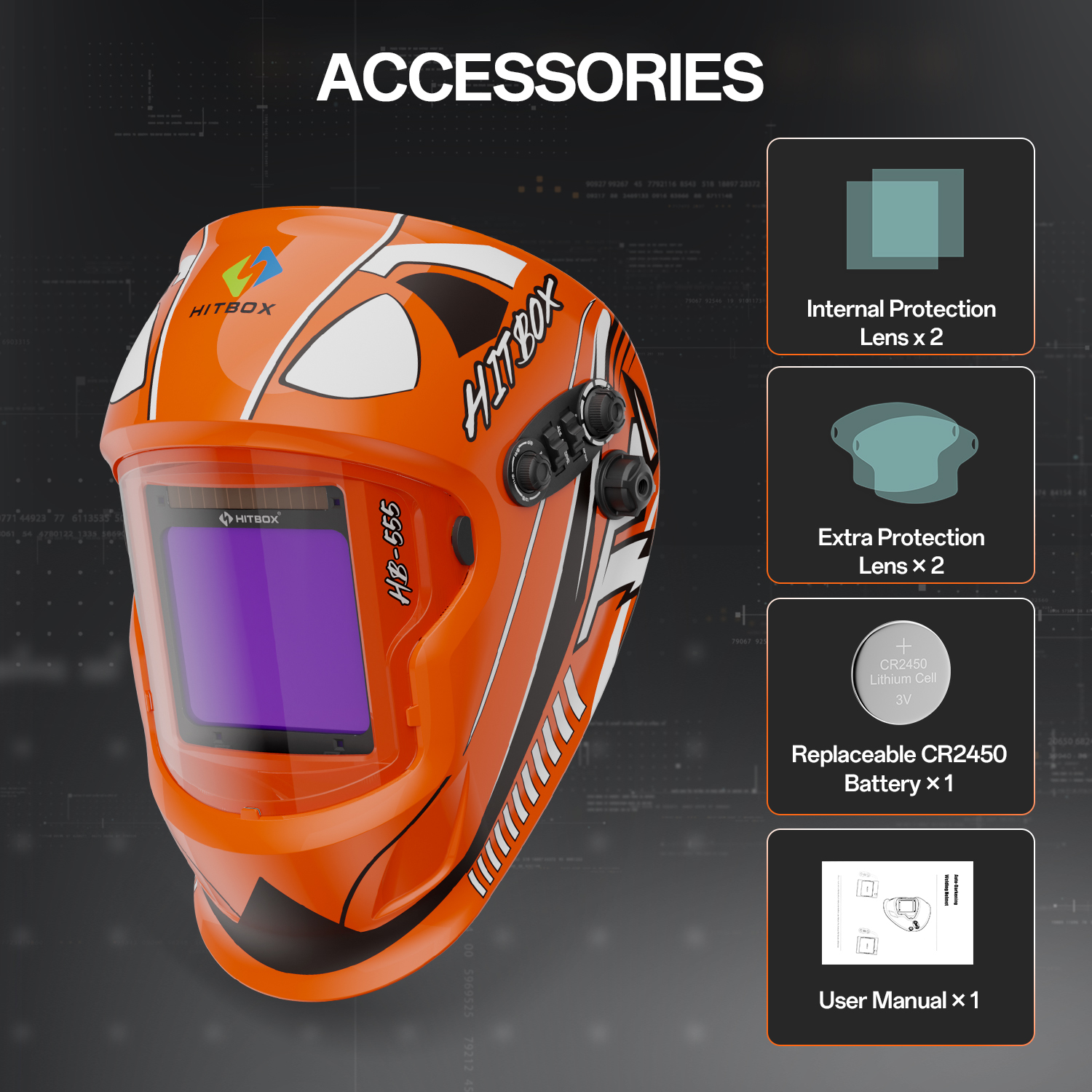

HITBOXWeldingHelmet

UserManual

1*pcsoutsidereplacement lens

1*pcsinsidereplacementlens

2*Replacement LithiumBattery
